7kW- 22kW Home Charging Wallbox Station with Dynamic Load Balance
Box
Product Description
Power Specification |
| SAE Standard | IEC Standard |
AC Level 2 | 1-Phase | 3-Phase |
240V | 220V ± 15% | 380V ± 15% |
| 3.5kW/16A | 3.5kW/16A | 11kW/16A |
7kW/32A | 7kW/32A | 22kW/32A |
10kW/40A | N/A | N/A |
| 50/60Hz | 50/60Hz | 50/60Hz |
Connector Type | SAE J1772 (Type 1) | IEC 62196-2 (Type 2) |
User Interface & Control |
Charging Control | Plug and Play, RFID Card or App |
Display Screen | 3.0-inch LCD Screen |
Voice Prompt (Optional) | Voice guide of the charging process in English |
Indicators | LCD display-Power/Connect/Charging/Fault |
External Communication | Wi-Fi, bluetooth |
OCPP Protocol (Optional) | 1.6 or 2.0.1 |
Environmental |
Storage Temperature | -40 to 75℃ (-40 to 167℉) ambient |
Operating Temperature | -30 to 55℃ (-22 to 131℉) ambient |
Operating Humidity | Up to 95% non-condensing |
Altitude | ≤2000m |
Protection |
Protection Ratings | IP 65 | RCD | Type B |
Over Voltage Protection | Yes | Under Voltage Protection | Yes |
Over Load Protection | Yes | Short Circuit Protection | Yes |
Earth Leakage Protection | Yes | Ground Protection | Yes |
Over-temp Protection | Yes | Surge Protection | Yes |
Wallbox Mechanical |
Dimension (H x W x D, mm) | 180mm*180mm*70mm |
Weight | 1-phase＜6kg; 3-phase＜8kg |
Charging Cable Length | 5m or Customize Length |
Product Detail

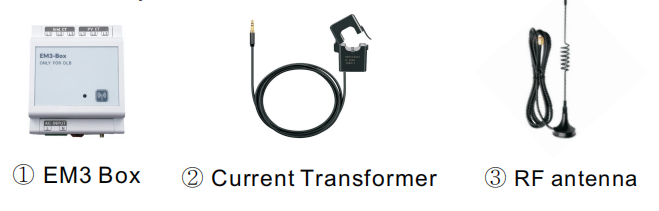

EM3-Box
LCD display
Features
✔ OCPP, WIFI, Bluetooth, dynamic load balance
✔ Each wallbox EV charger comes with its APP
✔ Total 10 Lauguages, including French, German, Russian, etc., the language also supports
customization
✔ Type A+DC6mA makes charging more safer
✔ compatible with solar system
✔ Each EV charging station is with emergency stop botton
✔ Standby power consumption<5W save much energy
✔ 180mm*180mm*70mm small design makes anywhere is possible
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown
cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your
authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery or others let's
discuss
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU, EXW
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your
advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample for beginning testing.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our
customers benefit ;
2. We respect every customer as our friend and we sincerely do
business and make friends with them,
no matter where they come from.
