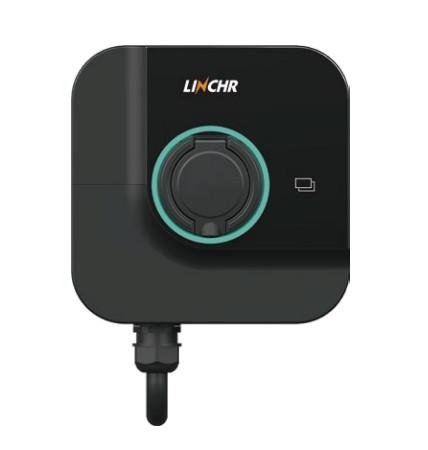

7kW 22kW EV Charging Station with Dynamic Load Balance OCPP JSON1.6

Power Specification

Type B DC 6mA + 30mA AC leakage protector

Various startup modes,RFID card,APP,plug in and charge.

Load balancing management and solar matching function.

Saving on electricity bills by scheduling off-peak charging.

The Hierarchical maintenance design makes the maintenance and replacement much easier.

Compliant with OCPP 1.6 JSON and compatible with most of the charging network platforms in the European and UK market.

Over current, over voltage and short circuit protection, etc. make charging much safer.

Protection

Rated Power	7.4kw,11kw,22kw
Type of connection	1P+N+PE,3P+N+PE,6-10mm2
Nominal Supply	230 VAC±15%,400VAC±15%
AC input frequency	50Hz/60Hz
Adjustable current	6A-32A Variable(Via APP)
Over Current protection	40A Supply(external MCB)
RCD protection	Built-in Type B RCD DC 6 mA/AC 30 mA (Industrial-grade protection
Standby Power Consumption Integrated protections	<8W
Connectivity	Bluetooth/WiFi/Ethernet/4G Optional/RS485/CAN Control charging with the LINCHR APP Built-in RFID reader,OCPP1.6
Solar Compatibility	EO,EO+,and Fast charging modes
Load Balancing Installation network	Up to 32 units can be connected
Supply Cable Entry	TN, IT, and TT
Housing material/Enclosure	O18mm-O24mm hole drilled at site through top and bottom of enclosure
Mounting	Wall-mounting,pedestal mounting
