Mode 4 EV Charging Cable Type 2 250A 300A 1000V Weathering Resistance

Product Categories

Chengdu Honors Technology Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	ANS
Model Number :	ANS-350A
Certification :	TUV, CE
Price :	USD
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :	30days

Add to Cart

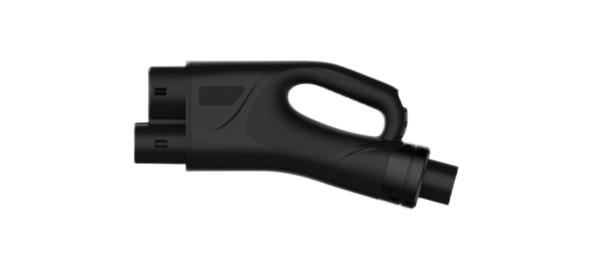

CCS Combo 2 Charging Cables Type 2 DC Charging Plugs 250A 300A 350A 1000V DC

Product Feature

IP67 (Protective cap) / IP67 (Plugged in).

Silver-plated contacts, low contact resistance.

Ergonomic handle.

TPU Cable with excellent flexibility, soft touch, weathering resistance, fatigue

resistance and temperature resistance.

Cable diameter of just 21mm for 100A; 23mm for 150A; 28 mm for 200A; 30.5 mm

for 250A; 32.5mm for 300A; 35.5mm for 350A.

PT 1000 temperature sensors embedded.

Customized length and cable end preparation.

Lower resistance and more reliable connection between DC contacts and cable with

double-side ultrasonic welding

Charging mode/Connection Mode	Mode 4/ Case C
Working Temp.	-40~+50℃
Storage Temp.	-40~+85℃
Altitude	<4000m
Humidity	90%@50℃ non-condensing
Outer Sheath Material	TPU
Cable Structure	2x(2x50)+(16+20)+6x0.75
Outer Diameter	35.5±0.8mm
Terminal Temp. Rise	<50K(after 10K cycles)
Num. Of Terminals	3 (PE,DC+,DC-) 2 (CP, PP)
Terminal Material	Cu-Ni alloy + Silver plated
Plug Material	PA6+GF30
Flammability	UL94 V-0
Degree Of Protection	IP67
