Intelligent Commercial OCPP2.0 22kW 32A 3phase Type 2 Ev Charging Stations

Features:

11/22kW Multipurpose Wallbox, intelligent and flexible for various applications: fleets, retail, workplace

• Flexible authentication

RFID, mobile APP, plug & charge.

• MID energy meter (external connection from RS485)

More precise metering, comply with the most demanding billing requirements.

• 4G communication (optional)

A variety of communication interfaces ensure the charger can be connected to the background system.

• LCD display

The 3.5 inch screen display the charger status, charging power, etc.

Power Specification

Model Number:H2

AC Power Input Rating: 380VAC(3-Phase)

Rated Frequency: 50/60Hz

Output Current: 32A/16A

Output Power: 22kW/11kW

Connector: Type 5m charge cable

Protection

IP Code: IP55

Leakage Protection: AC 30mA+DC 6mA

Electrical Protection: Over/Under Voltage Protection, Over Load Protection, Short Circuit Protection, Earth Leakage Protection, Ground Protection, Over-temp Protection, Surge Protection

User Interface&Control

Product pictures

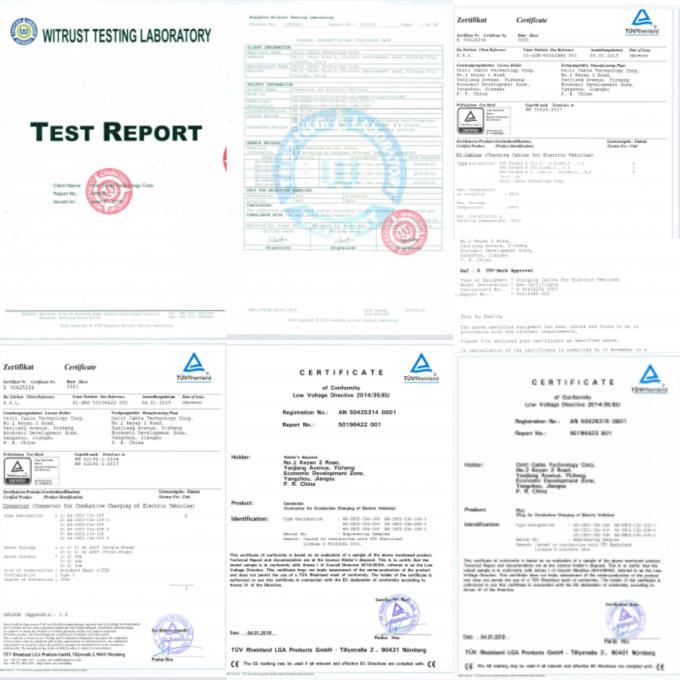

Certification
