8A10A13A16A Home charger AC 11KW Mode 2 portable EV charger

Ask Lasest Price
Brand Name :	ANS
Model Number :	ANS-portable-charger
Certification :	CE
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100000PCS/month
Delivery Time :	20-30days

Add to Cart

Product Details
Company Profile

8A10A13A16A Home charger AC 11KW Mode 2 portable EV charger

Home charger 11KW Mode 2 portable EV charger 8A10A13A16A

Product Description

Type	ANS-EVA11	Plug the power	80N<F<100N
Color	Black/White/customized	Patch life	≥10000
Rated Current	8A-10A-13A-16A	Fire rating	UL94 V-0
Rated Voltage	380V~450V	Waterproof rating	IP55
Resistance Voltage	2000V	Operating Temperature	-30°C to50°C
Insulation resistance	>10MΩ	Cable Specifications	52.5mm2+20.5mm2
Contact resistance	less than 0.5mΩ	The main material	PA/Copper Alloy

Functional definition:

Mark	Functional Definition
1-(L1)	AC power
2-(L2)	AC power
3-(L3)	AC power
4-(N)	Neutral
5-(PE)	PE
6-(CP)	Control Confirmation
7-(PP)	Connection Confirmation

Product Detail

11KW 380V Mode 2 Electric Vehicle Charger / Type 2 plug

Cable length: 5m
Car Side Plug : Type 2
Current:8A-10A-13A-16A
Voltage: 380V±20%
Max. power: 11kW
Ingress Protection: IP 55
Operating temperature: -30℃~+50℃
Certificate: CE

Features

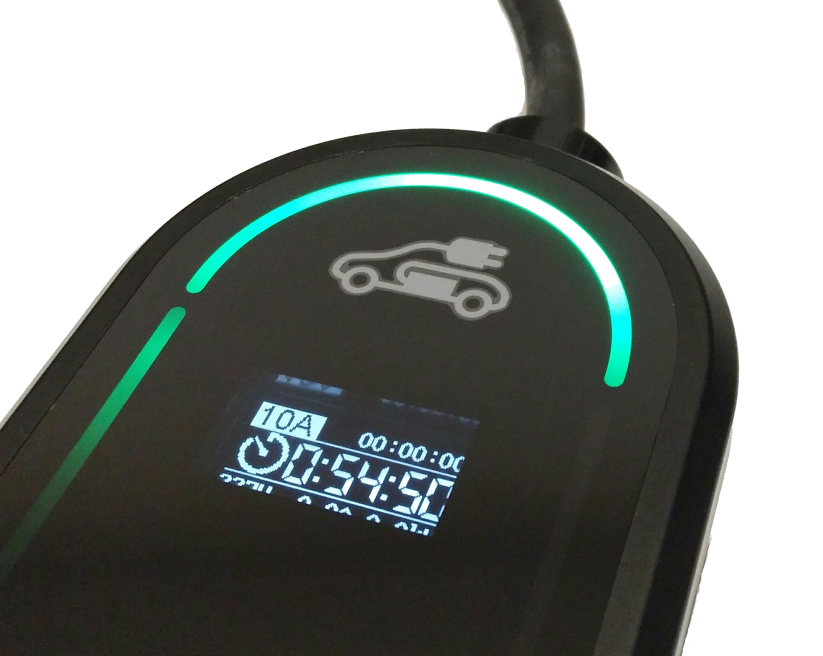

LED Display:

1. Charging Temperature

2. Charging Current

3. Charging Voltage

4. Energy Charged in KW/h

5. Charged time.

6.Set Current

7. Charging speed in KW

LED Indicators

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

Certification
