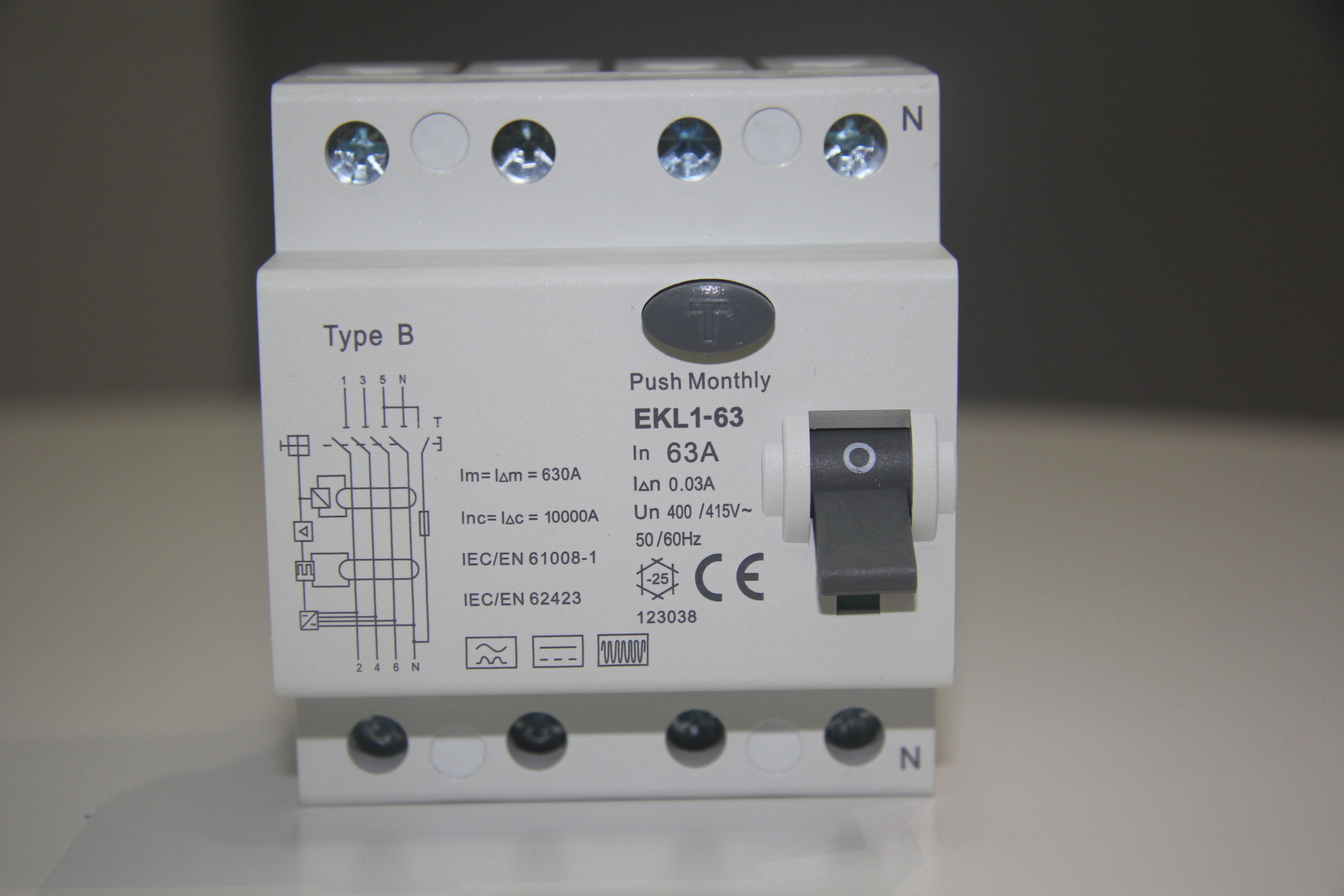

    10KA Type B 63A RCD Circuit Breaker For Leackage Protection

    Ask Lasest Price
    Brand Name : ANS
    Model Number : EKL1-63B 10KA B type RCCB
    Certification : CE/TUV
    Price : USD10-USD70
    Payment Terms : T/T, Western Union,Paypal, L/C
    Supply Ability : 600pcs/day
    Delivery Time : 10-30days
    • Product Details
    • Company Profile

    10KA Type B 63A RCD Circuit Breaker For Leackage Protection

    Residual Current Circuit Breaker leackage protection rcd circuit breaker RCCB/RCD Type B 40A AC 30mA DC6mA

    Technical Data:


    ModeElectromagnetic

    Type(wave form of the earth leakage sensed):

    		B
    Rated current In
    25,40,63A
    Poles
    4P
    Rated voltage
    4P 415V~
    Insulation voltage Ui
    500V
    Rated frequency
    50/60Hz
    Rated residual operation current(I△n)
    30mA
    Rated residual making and breaking capacity (I△m)
    500(In=2540A) 630(In=63A)
    Short-circuit current Inc= I△c
    10,000A
    Break time under I△n
    ≤0.1s
    Rated impulse withstand voltage(1.5/50) Uimp
    4000V
    Dielectric test voltage at ind.Freq. for 1min
    2.5kV
    Electrical life
    2,000 Cycles
    Mechanical life
    4,000 Cycles

    Installation:

    • Contact position indicator: Yes
    • Protection degree: IP20
    • Ambient temperature(with daily average≤35℃): -5℃~+40℃
    • Storage temperature: -25℃~+70℃
    • Terminal connection type: Cable/Pin-type busbar/U-type busbar
    • Terminal size top/bottom for cable: 25mm 18-3AWG
    • Mounting: On DIN rail EN60715(35mm) by means of fast clip device
    • Connection: From top and bottom
    • Tightening torque: 2.5Nm 22In-lbs

    Why Us:

    • CE/TUV/UL/RoHs listed
    • ISO9001:2015; IATF16949:2016
    • 1 years warranty--any complaint on quality, we will send new replacement without hesitation
    • OEM/ODM supportable--Supporting customization for your exclusive branding,like color,brand,cable length etc
    • Rich experience with many cooperated customers on EU market. Products have been well examined
