0.03mA RCD RCCB RCBO Circuit Breaker Type B 4 Pole For Protection

Ask Lasest Price
Brand Name :	ANS
Model Number :	ANS-RCBO-32A
Certification :	TUV,CE
Price :	USD
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000pcs a day
Delivery Time :	20-30days

Add to Cart

Product Details
Company Profile

0.03mA RCD RCCB RCBO Circuit Breaker Type B 4 Pole For Protection

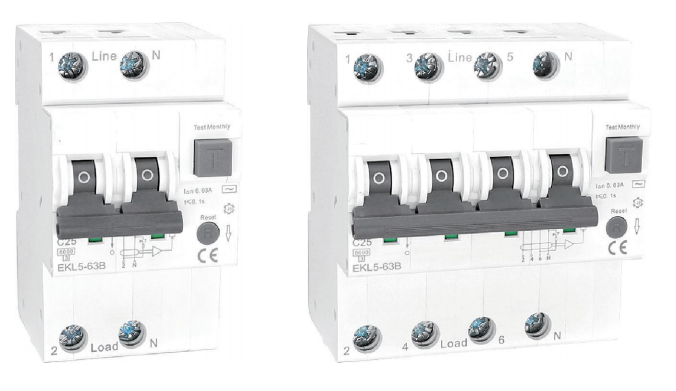

4 Pole Type B RCBO 4 poles B32A 0.03mA Residual Current RCBO Circuit Breaker

Technical Data

Mode

Electronic

Type
Rated current In

B
16,20,25,32,40,50,63A

Poles

2P(1P+N),4P(3P+N)

2P 240V~

Rated voltage Ue
Insulation voltage Ui

4P 415V~

500V

Rated frequency

50/60Hz

Rated residual operating current(I△n)

30,100,300mA

Break time under I△n

≤0.1s(S type ＜0.5s)

Rated breaking capacity

6,000A

Energy limiting class

Rated impulse withstand voltage(1.5/50) Uimp

4,000V

Dielectric test voltage at ind.Freq. for 1min

2kV

Pollution degree

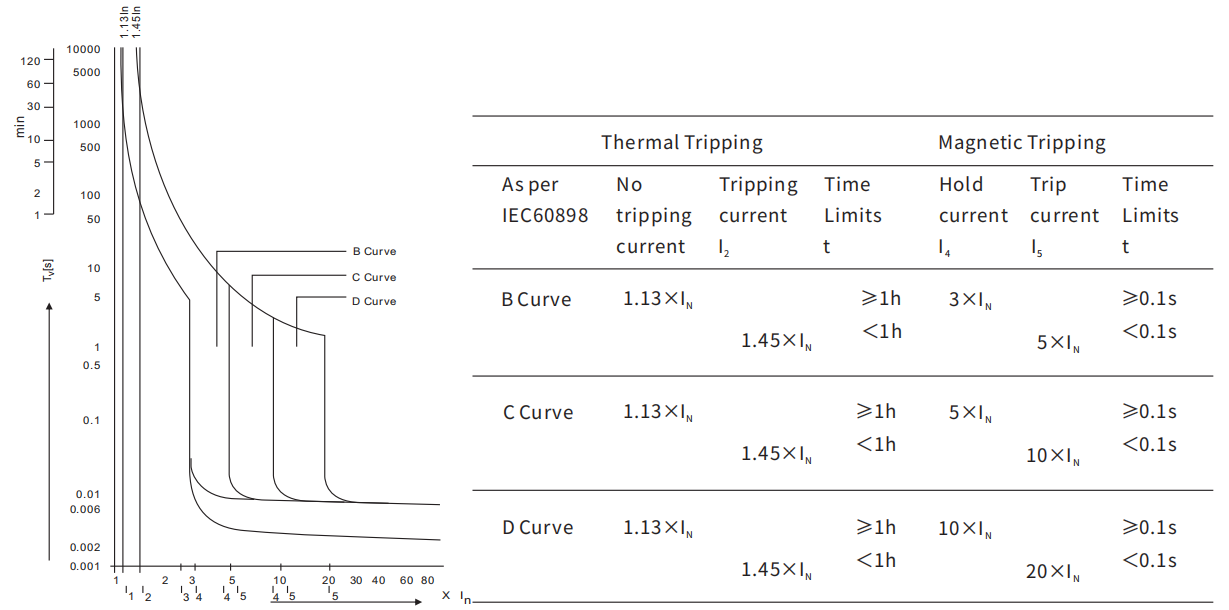

Thermo-magnetic release characteristic

B,C

Mechanical Features

Electrical life

4,000 Cycles

Mechanical life
Contact position indicator

10,000 Cycles
Yes

Protection degree

IP20

Reference temperature for setting of thermal element

30℃

Ambient temperature (with daily average≤35℃)

-5℃~+40℃

Storage temperature

-25℃~+70℃

Installation

Terminal connection type
Terminal size top/bottom for cable

Cable/Pin-type busbar/U-type busbar
25mm2 18-3AWG

Terminal size top/bottom for busbar

25mm2 18-3AWG

Tightening torque

2.5Nm 22In-lbs

Mounting

On DIN rail EN60715(35mm) by means of fast clip device

Connection

From top

Combination with accessories

Auxiliary contact

EKM1-OF

Alarm contact
Shunt release

EKM1-FB
EKM1-MX

Tripping Current Range

Lagging Angle
0°

I△n＞0.01A
0.35I△n≤I△≤1.4I△n

I△n≤0.01A
0.35I△n≤I△≤2I△n

90°

0.25I△n≤I△≤1.4I△n

0.25I△n≤I△≤2I△n

135°

0.11I△n≤I△≤1.4I△n

0.11I△n≤I△≤2I△n

Certification:TUV
