16A 250V 1Phase GBT Charging Cable Electric Vehicle Connectors

Product Categories

Chengdu Honors Technology Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	ANS
Model Number :	ANS-GB-16A
Certification :	3C
Price :	USD
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500pcs a week
Delivery Time :	25days

Add to Cart

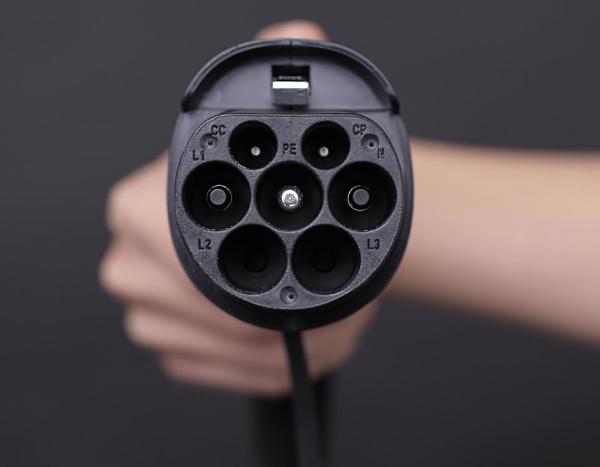

Chinese Standard 16A 250V 1Phase AC Charging Plug EV Connector GB/T EV Charging Cables

Features

Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/T20234.2-2015
The head of pins using safety insulation design to prevent direct contact with the hand
Excellent protection performance, protection grade achieved IP55 ( working condition )
Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )
Reliable material,flame-etardant, pressure proof .wear-resisting,impact resistance ,high oil proof

rated current	16A
rated voltage	250V
Insulation resistance	>1000M Ω
Pins temperature rise	< 50K
Withstand voltage	2500V
Contact impedance	0.5m Ω Max
Shell material	thermoplastics,lame retardant grade UL94
Pin	copper alloy,silver-plate and use thermoplastic at the top
Envirommental perommance	-30℃- +50℃
cables size	32.5+20.5mm2

Certification: IATF 16949,3C
