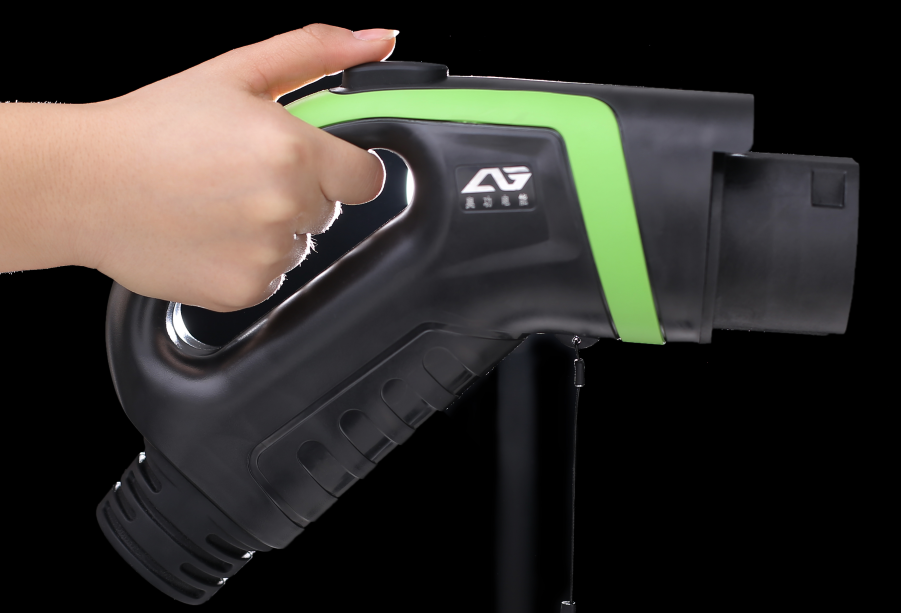

Chinese Standard DC Fast Charger 250A 750V GB/T EV Charging Cables

Features

• Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles>GB/T20234.2-2015
• Have a electromagnetic locking device, have functions of signal feedback
• Have one or two PTC (PT1000) thermistors (can match with NTC or Temperature control switch)
• The head of pins using safety insulation design to prevent direct contact with the hand
• Excellent protection performance, protection grade achieved IP55 ( working condition)
• Adopted double color coating technology, personalized custom a variety of colors (Orange, blue, green.grey)
• Mechanical life: no-load plug> 10000
• Lmpact of external force:can afford 1m drop and 2t vehicle run over pressure

Electrical performance

• The rated current : 80A,125A,200A,250A
• The rated voltage : 750V/100ov
• lnsulation resistance:> > 2000MQ ( DC1000v)
• Pins temperature rise: <50K
• Withstand voltage: 4500v ( DC+/DC-/PE)
• Contact impedance: 0.5m Q Max

Applied Materials

• Shell material: thermoplastics, flame retardant grade UL94-0
• Pin: copper alloy, silver-plate and use thermoplastic at the top

Certification: IATF 16949,3C
