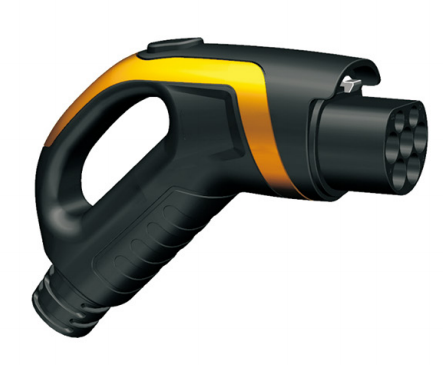

Chinese Standard AC Charging Plug 63A 440V 3Phase GB/T EV Charging Cables

Electrical Performance

• The rated current : 32A,63A
• Operating voltage: 440V
• lnsulation resistance:> 1000M (DC500v)
• Pins temperature rise: <50K
• Withstand voltage: 2500V
• Contact impedance: 0.5m Q Max

Features

• Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/T20234.2-2015
• Have one or two PTC ( PT1000 ) thermistor ( can match with NTC or Temperature control switch )
• The head of pins using safety insulation design to prevent direct contact with the hand
• Excellent protection performance, protection grade achieved IP55 ( working condition )

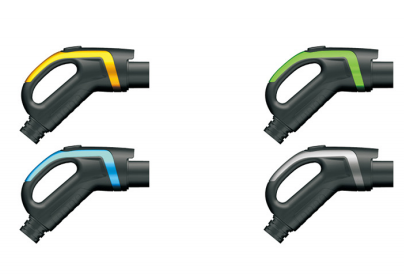

• Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )
• Reliable material,flame-etardant, pressure proof. wear-resisting,impact resistance ,high oil proof

Certification: IATF 16949,3C
