32A 480V 3 phase EV Charging Station 22kW TUV Certification Home Use Wallbox AC EV Charging Station

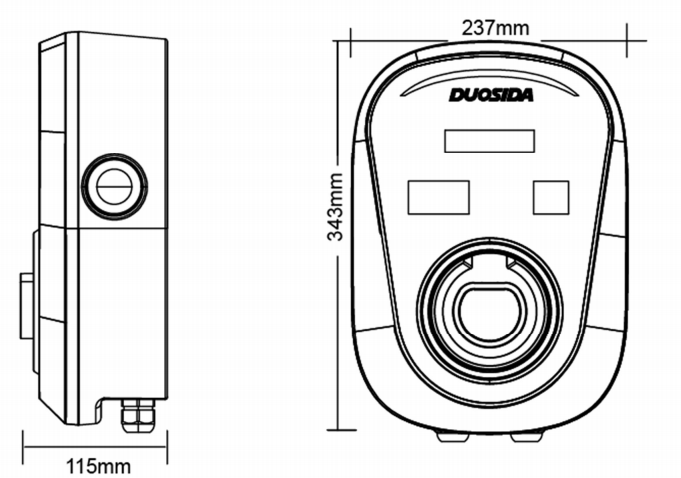

Specification of Wallbox EV Charger+Mounting Pole

Appications

• Residaential areas like apartment and dvetings
• Parking garage of ofice building,hospital, supermarket,moteland etc.for commerial Evdhargng
• Ev infrastrcure operators and serice provides

Technical specifications

• Installation method: wall mounted

• Maximum power: 22kW

• Communication interface (optional):GPRS ■ WIFI ■ RFID

• Outdoor protection:Without power supply - the waterproof protection grade can reach up to IP55

• With power supply-The waterproof protectiongrade state can reach up to IP54, under coupling state.

• Safety regulation: Meet IEC 61851 and IEC 62196

• Operating temperature:ambient temperature - 30 ℃ to 50 ℃

Output type:

EN 61851-1 MODE 3 OR MODE 2

7KW:250VAC@32A

Basic functions:

• Starting mode: charge when plug

• Reminder function

• charging indication

• fault indication

• Self-test function: fault self-position (can be checked in the background after being networked)

• Human-computer interaction

• Safety protection

• Double leakage detection and protection

• Emergency stop button protection

• Over current, over voltage, under voltage and

• over temperature protection

• Data record if Power off (can be checked in the background system if being networked)

• Surge protection meets the latest IEC 61851 standard

• EMC meets the latest IEC 61851 standard
