    Spiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 Standard

    Ask Lasest Price
    Brand Name : ANS
    Model Number : ANSAG-T2-T2-32A
    Certification : TUV,CE,RoHs, REACH
    Price : USD
    Payment Terms : L/C, D/A, T/T, D/P, Western Union
    Supply Ability : 1000pcs one day
    Delivery Time : 20-30days
    • Product Details
    • Company Profile

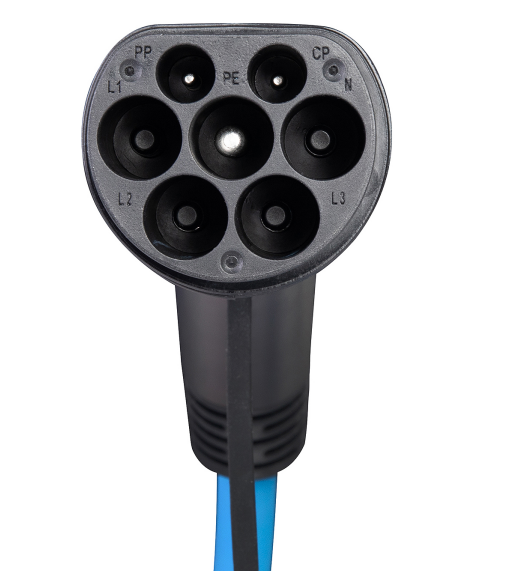

    Spiral 7kW Type 2 To Type 2 Charging Cable 32A 250V 1 Phase IEC 62196 Standard

    IEC 62196 standard 32A 250V 1 phase 7kW ev charging leads type 2 to type 2 spiral ev cables

    Product Features

    • Standard Connector, can be identified by EV (with Type 2 inlet) correctly and charge effectively.
    • Rugged design. Its structural strength is sufficient enough to support the rolling of an electric car.
    • Unique Arc Extinguishing technique makes sure that there won't have any electric sparks when plugging in and plugging out.
    • Safe & Reliable. The cable is made of flame-retardant TPU material, which can withstand the direct fire combustion within a safe time.
    • Durable. The advanced Crimping Technology ensures a working life of over 3000 times safe plugging in or out without any off-line error.
    ProductModel:ANSAG-T2-T2-32A
    Product TypeType 2 to Type 2 ev charging cable
    Stardard:IEC 62196-2
    Rated Voltage:AC 250V

    Rated Current:

    32A
    Withstanding voltage:2000V
    Working temperature:-30℃ to +65℃
    StorageTemperature:-40℃ to +70℃
    Terminal temperature rise:<50K
    Contact impedance:0.5mMax
    Protection level:IP67

    Certifications:

    TUV CE
    Warranty:2 years
    Plug Colour:Black, Red, Orange, Yellow, Green, Blue or Customization
    Mechanical life:No-load plug in/pull out>10000 times
    Insertion and Extration Force:45N<F<100N

    Impato fex ternal force:

    Can afford 1m drop and 2T vehicle run over pressure


    Part nameMaterialSupplier
    CablePUR (TPU)HUNTSMAN: A85P4380
    Shell of plugPC+PBTSABIC:V3900WX
    Head of plugPA66+GF25DUPONT: FR50

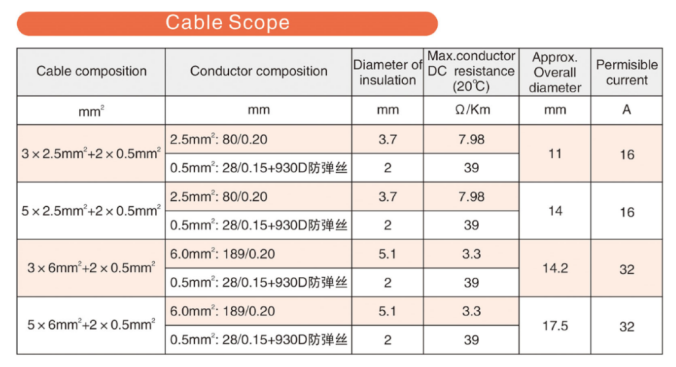

    TPU Materials cables Components

    Advantage
    • Conform to the provisions and requirements of IEC 62196-2 2016 2-lle
    • Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle ,plug conveniently
    • XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
    • Excellent protection performance, protection grade achieved IP55 ( working condition )
    • Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )

    Applied Materials

    • Shell material: thermoplastics, flame retardant grade UL94-0

    • Pin: copper alloy, silver-plate and use thermoplastic at the top

    Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949
