J1772 Type1 Plug 10A 13A 5m Portable EV Charger With UK Plug Mode 2

Chengdu Honors Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap J1772 Type1 Plug 10A 13A 5m Portable EV Charger With UK Plug Mode 2 from wholesalers

    Buy cheap J1772 Type1 Plug 10A 13A 5m Portable EV Charger With UK Plug Mode 2 from wholesalers
    • Buy cheap J1772 Type1 Plug 10A 13A 5m Portable EV Charger With UK Plug Mode 2 from wholesalers
    • Buy cheap J1772 Type1 Plug 10A 13A 5m Portable EV Charger With UK Plug Mode 2 from wholesalers
    • Buy cheap J1772 Type1 Plug 10A 13A 5m Portable EV Charger With UK Plug Mode 2 from wholesalers
    • Buy cheap J1772 Type1 Plug 10A 13A 5m Portable EV Charger With UK Plug Mode 2 from wholesalers

    J1772 Type1 Plug 10A 13A 5m Portable EV Charger With UK Plug Mode 2

    Ask Lasest Price
    Brand Name : ANS
    Model Number : ANSYH-P-uk
    Certification : TUV
    Price : USD
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100000PCS/month
    Delivery Time : 20-30days
    • Product Details
    • Company Profile

    J1772 Type1 Plug 10A 13A 5m Portable EV Charger With UK Plug Mode 2

    J1772 Type1 Plug 10A 13A 5metres EV Charging Cabl With UK Plug Mode 2 Wallboxes Portable EV Charger



    Product Description

    1 Electric parameter
    1.1 Rated Frequency
    50/60Hz
    1.2 Rated current
    8/10/13/16/32A
    1.3 Rated voltage
    single-phase, 230V±15%, 50/60Hz
    2 Mechnical Parameter
    2.1 IP Code
    IP67
    2.2 Charging Adapter Cable
    5 meters cable or custom length
    2.3 Dimensions
    W × D × H = 230 × 93× 62 mm
    2.4 Weight
    <5kg
    2.5 Input Plug Standard
    Select one of the following options:Blue CEE, NEMA Plug, UK Plug, Schuko Plug or AU Plug
    3 Functional Description
    3.1 Charging Control Model
    Plug and play
    3.2 Display Screen(Optional)
    OLED screen (display charging current, voltage, output energy, charging time, state information, fault information and etc.)
    3.3 Indicator Light
    4 LED indicators-Power/ Connection/ Charging/ Fault
    3.4 RCD type
    Type A
    3.5 Adjustable output current
    Button options: 8A/10A/13A/16/32A
    3.6 Preset function
    Preset charging time trough the button
    3.7 Safety Protection
    surge protection, over temperature, leakage, over/under voltage, over current, ground protection
    4 Environmental Conditions
    4.1 Operational environment
    indoor or outdoor, good ventilation, no flammable, explosive or corrosive gases
    4.2 Vibration
    <0.5G, no violent vibration and impact
    4.3 Altitude
    ≤2000 meters
    4.4 Storage Temperature
    -30 ~ 75 ℃ (-22 ~ 167 ℉)
    4.5 Operating Temperature
    -30 ~ 55 ℃ (-22 ~ 131 ℉)
    4.6 Operating humidity
    95%RH, no water droplet condensation




    Product Detail

    J1772 Type1 Plug 10A 13A 5m Portable EV Charger With UK Plug Mode 2



    Control Box Function:

    1. Leakage protection

    2. Over-voltage or Low-voltage protection

    3. Over-load protection

    4. Lightning protection

    5. Over-heat protection

    When the internal temperature of the control box exceeds 85°C,enter over-tempe

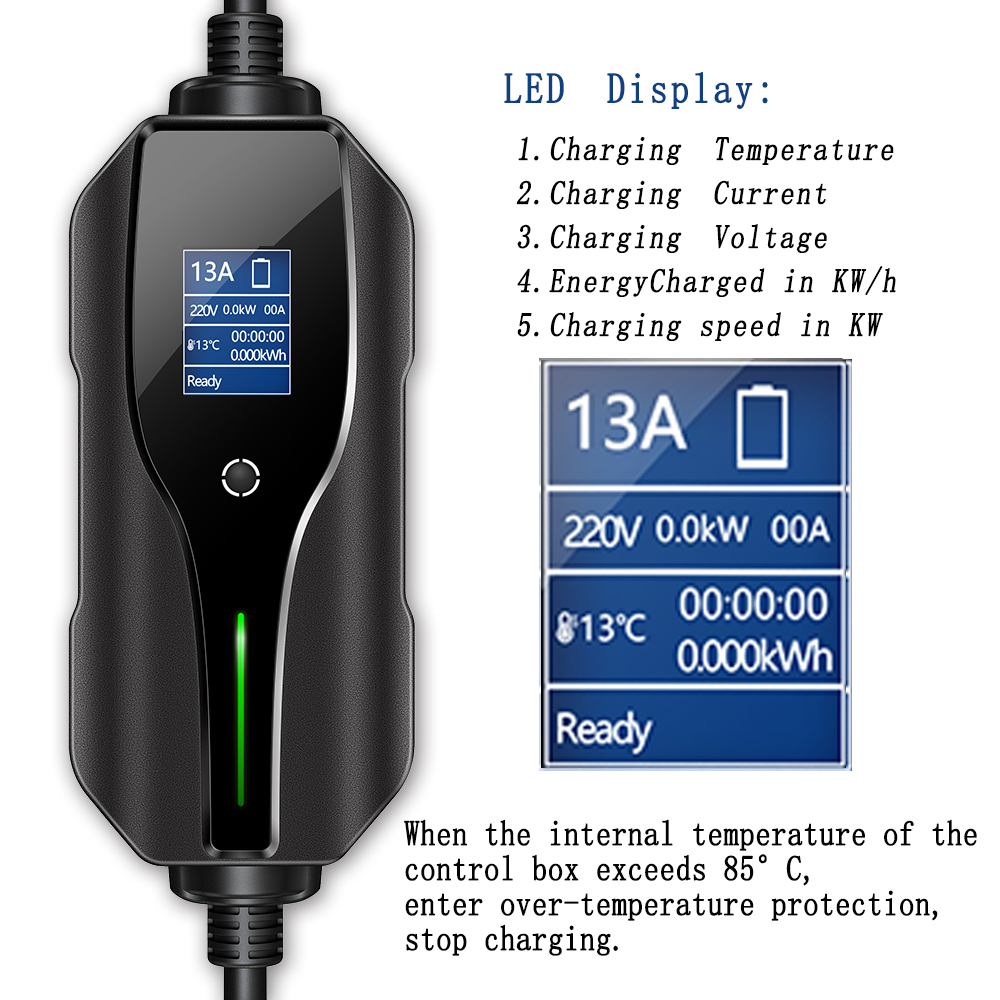

    LED Display:

    1. Charging Temperature

    2. Charging Current

    3.Charging Voltage

    4. EnergyCharged in KW/h

    5. Charging speed in KW


    Features

    Electric Vehicle Car Portable Charger J1772 Type1 Plug 10A 13A 5metres EV Charging Cabl With UK Plug Mode 2 Wallboxes Port


    Warnings:

    ● Do not use the charging box if it is damaged.

    ● Only use for EV charging

    ● Please do not disconnect while the charging box is charging.


    Specifications:

    Length: Total 5meters

    IP Grade: IP65 waterproof

    Rated Current: 8/10/13Amp adjustable

    Input/Output: 240V 50Hz

    Operating Temperature: -30℃~+50℃

    Pin Material: Copper Alloy, Silver+ Thermoplastic On the Top

    Retardant Frade: UL94V-0


    J1772 Type1 Plug 10A 13A 5m Portable EV Charger With UK Plug Mode 2


    FAQ

    Q1. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
    we can pack the goods in your branded boxes after getting your authorization letters.
    Q2. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
    before you pay the balance.
    Q3. What is your terms of delivery?
    A: FOB, CFR, CIF, DDU.
    Q4. How about your delivery time?
    A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends

    on the items and the quantity of your order.
    Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
    Q6. What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
    the courier cost.
    Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery
    Q8: How do you make our business long-term and good relationship?
    A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them,
    no matter where they come from.
