Brand Name : | ANS |
Model Number : | ANSAG-T2-22kW |
Certification : | TUV,CE |
Price : | USD |
Payment Terms : | L/C, D/A, T/T, D/P, Western Union |
Supply Ability : | 1000pcs one day |
Delivery Time : | 20-30days |
Applied Materials
ProductModel: | ANSAG-T2-32A | |

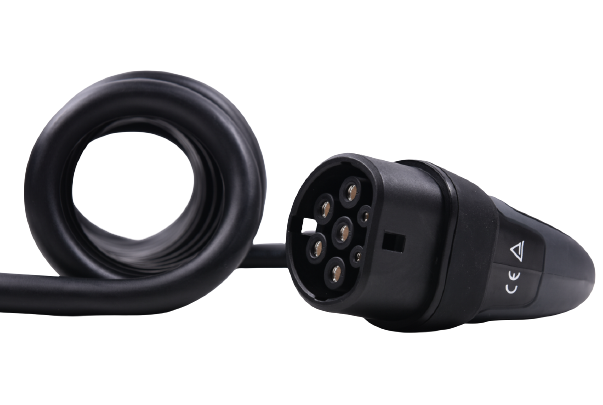

Product Type | Type 2 ev charging cable | |
Stardard: | IEC 62196-2 | |
Rated Voltage: | AC 480V | |
Rated Current:16 | A | |
Withstanding voltage: | 2000V | |
Working temperature: | -30℃ to +65℃ | |
StorageTemperature: | -40℃ to +70℃ | |
Terminal temperature rise: | <50K | |
Contact impedance: | 0.5mMax | |
Protection level: | IP67 | |
Certifications: | TUV CE | |
Warranty: | 2 years | |
Plug Colour: | Black, Red, Orange, Yellow, Green, Blue or Customization | |
Mechanical life: | No-load plug in/pull out>10000 times | |
Insertion and Extration Force: | 45N<F<100N | |
Impato fex ternal force: | Can afford 1m drop and 2T vehicle run over pressure |
Part name | Material | Supplier |
Cable | PUR (TPU) | HUNTSMAN: A85P4380 |
Shell of plug | PC+PBT | SABIC:V3900WX |
Head of plug | PA66+GF25 | DUPONT: FR50 |
Our business scope includes charging pile equipment, wind power
generation equipment, photovoltaic power generation equipment
and other products, providing targeted products and solutions for
government public power, transportation service charging, and
private
supporting power supply facilities.
All the products are produced in strict accordance with CQC
standards, and obtained CCC, TUV, UL and other certifications.
We adhere to the development concept of high efficiency, energy
saving and environmental protection. With independent innovation
and customer service as the foundation; market-oriented, quality of
survival. We firmly believe that ANS EVSE will surely set sail and
create brilliance!
Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949
![]() |
