7KW Mode 2 Schuko Ev Charger 16a Power Plug With Temperature Sensor

Ask Lasest Price
Brand Name :	ANS
Model Number :	ANS-portable-charger
Certification :	CE
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100000PCS/month
Delivery Time :	20-30days

Add to Cart

Product Details
Company Profile

7KW Mode 2 Schuko Ev Charger 16a Power Plug With Temperature Sensor

16A Power plug with temperature sensor AC 7KW Mode 2 portable EV charger with Schuko plug (max.16A)

Product Description

It is equipped with an LED display screen to clearly display relevant data, which is more convenient, safe and efficient. It is applicable to a variety of vehicles and can be installed and used in many occasions, such as underground parking garage, family garage, public garage, etc.

Type	CBYEN-ev16-P	Plug the power	80N<F<100N
Color	Black/White/customized	Patch life	≥10000
Rated Current	8A-10A-13A-16A	Fire rating	UL94 V-0
Rated Voltage	380V~450V	Waterproof rating	IP67
Resistance Voltage	2000V	Operating Temperature	-30°C to50°C
Insulation resistance	>10MΩ	Cable Specifications	52.5mm2+20.5mm2
Contact resistance	less than 0.5mΩ	The main material	PA/Copper Alloy

Functional definition:

Mark	Functional Definition
1-(L1)	AC power
2-(L2)	AC power
3-(L3)	AC power
4-(N)	Neutral
5-(PE)	PE
6-(CP)	Control Confirmation
7-(PP)	Connection Confirmation

Product Detail

16A Power plug with temperature sensor AC 7KW Mode 2 portable EV charger with Schuko plug (max.16A)

Cable length: 5m
Car Side Plug : Type 2
Current:8A-10A-13A-16A
Voltage: 380V±20%
Max. power: 7kW
Ingress Protection: IP 67
Operating temperature: -30℃~+50℃
Certificate: CE

Features

LED Display:

1. Charging Temperature

2. Charging Current

3. Charging Voltage

4. Energy Charged in KW/h

5. Charged time.

6.Set Current

7. Charging speed in KW

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

Producing&Packing

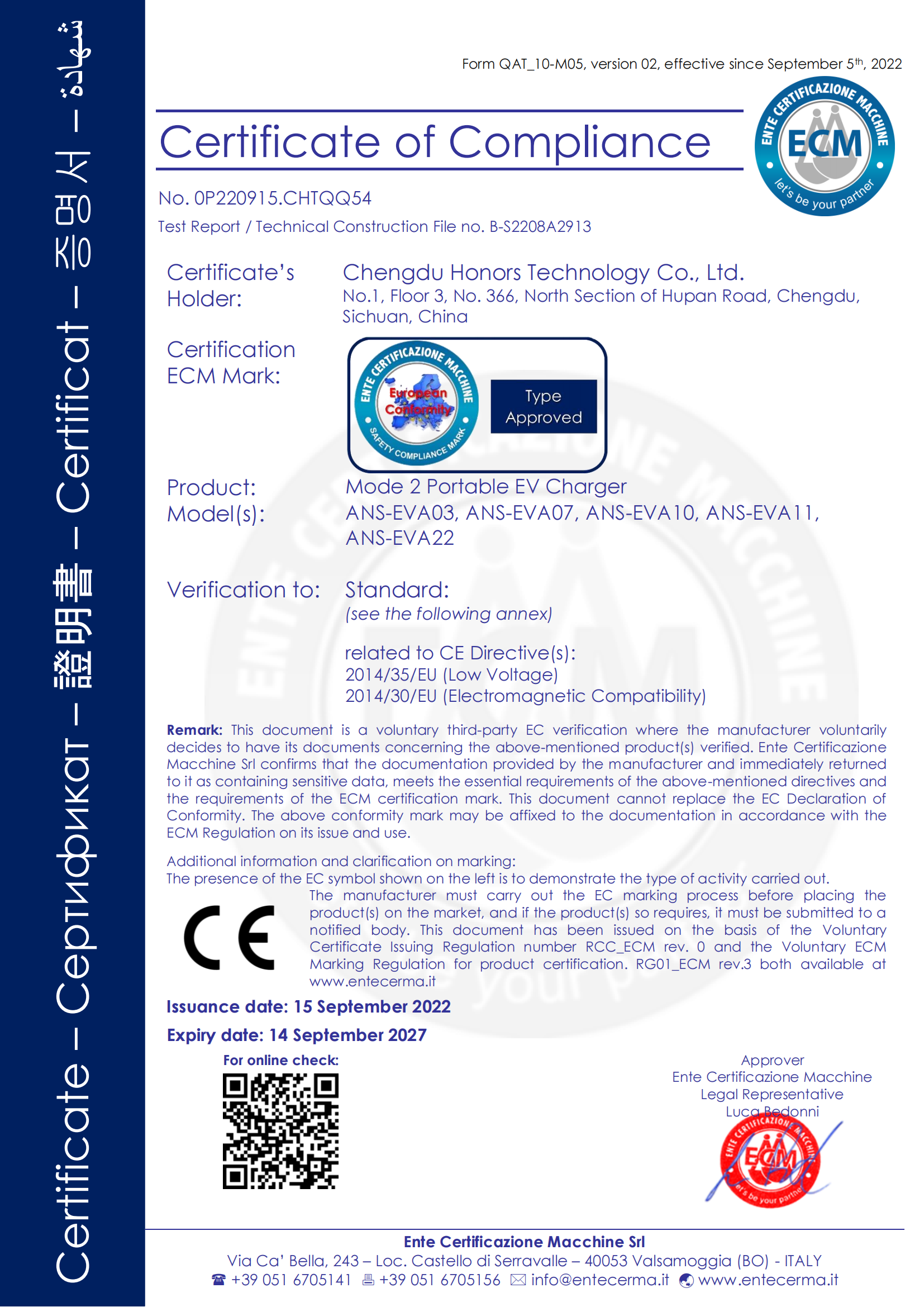

Certification

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends

on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
