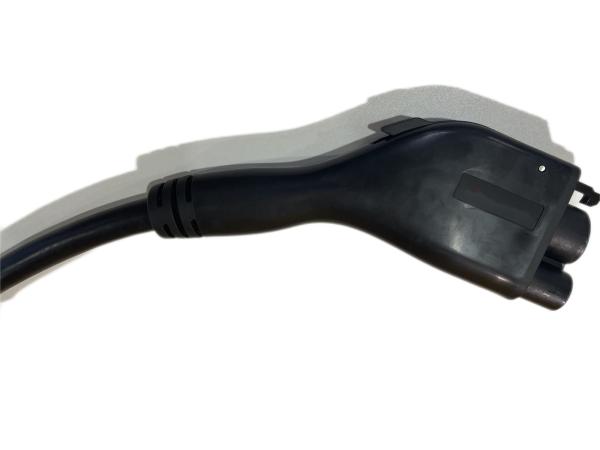

UL listed IP67 CCS Type 1 TPU ev charging cable 350A 1000V
Product Feature
- Entire specifications of CCS1 covered.
- IP67 / IP65 (Plugged in).
- Silver-plated contacts, low contact resistance.
- Ergonomic handle.
- TPE+PA layer insulation material with smaller OD, excellent fatigue
resistance and temperature resistance.
- Cable diameter: 41.5mm for 350A.
- PT 1000 temperature sensors embedded on both DC contacts.
- Customized length and cable end preparation.
- Lower resistance & more reliable connection between DC contacts and
cable with double-side ultrasonic welding.
- If needed,the branding label can be customized in accordance with
that of charging station company.
- Specialized 250A & 350A cable with even smaller OD, 29mm for 250A
and 36mm for 350A
Technical Data
| Product Type | CCS TYPE 1 DC Charging 350A |
| Product Definition | |
| Charging mode/Connection Mode | Mode 4/Case C |
| Environment | |
| Working Temp. | -40~+50℃ |
Storage Temp. | -40~+85℃ |
Altitude | <4000m |
Humidity | 90%@50℃ non-condensing |
Electrical properties | |
Rated Current | 350A |
Rated Voltage | 1000V DC |
Insulation Resistance | >100MΩ (1000V DC) |
Withstand voltage | <10mA (2500V AC) |
Mechanical properties | |
Mechanical Life | 10000 cycles(No Load) |
Pull Out Force | <100N |
Degree Of Protection | IP67 , IP65(Plugged in) |
Flammability | UL94 V-0 |
Plug | |
Plug Material | PA6+GF30 |
Plug Color | Black |
| Cable | |
| Outer Sheath Material | TPE |
| Cable Structure | 4×1/0AWG+2×9AWG+5×18AWG+1×18AWG(S) |
Outer Diameter | 41.5±0.8mm |
Insulation Material(Specialized) | TPE+PA layer |
Cable Structure(Specialized) | 4×1/0AWG+1×14AWG +5×18AWG+1×18AWG(S) |
Outer Diameter (Specialized) | 35.0±0.8mm |
|
Product Drawings
Our Certifications
FQA
Q1. What is your terms of Packaging?
A: Generally, we pack our products in neutral brown cartons. If you
have legally registered patent,
we can pack the goods in your branded boxes after getting your
authorization letters.
Q2. What is your terms of payment?
A: We accept all methods of payment: paypal, T/T, credit card,
Alibaba assurance, West Union... Please contact us for more
details.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will 3-7 days after receiving your advance
payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your products before delivery?
A: Yes, we have 100% test before delivery. 24 hours will be needed
to test the quality and performance.
Q8: How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our
customers benefit ;
